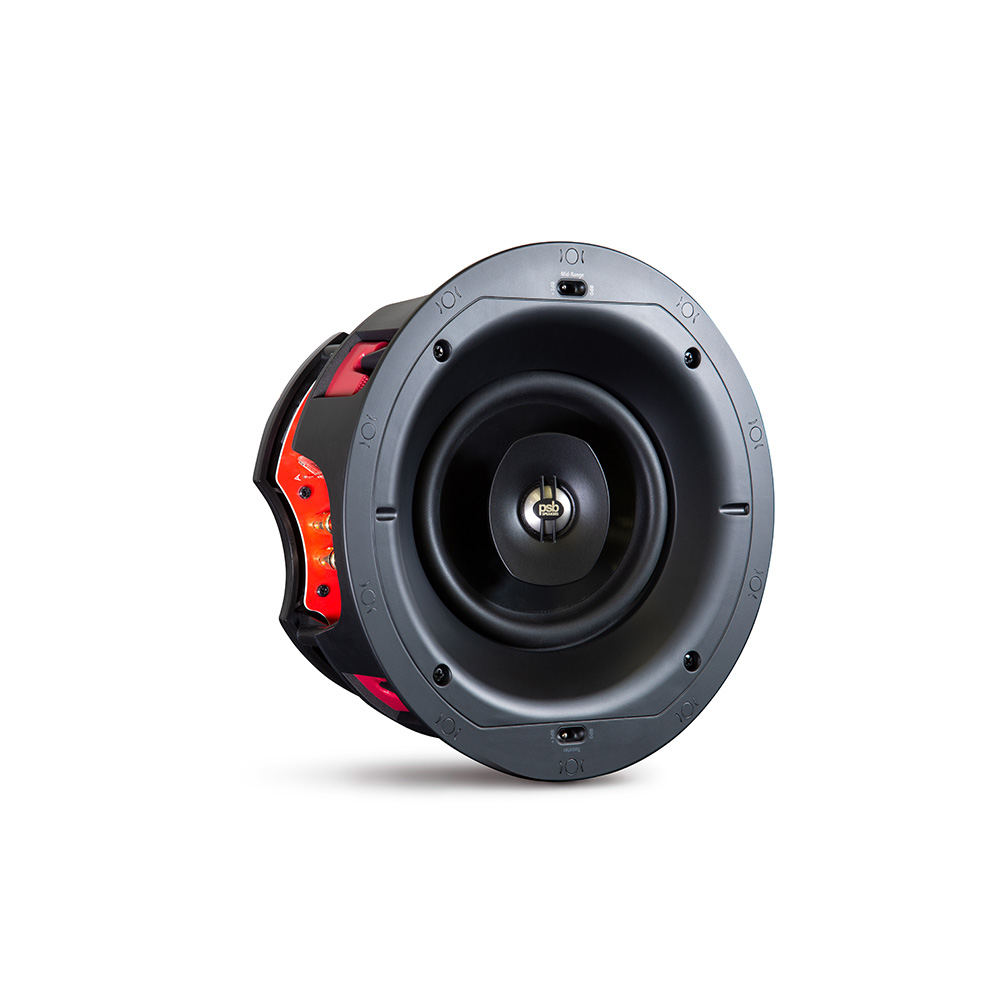

CS AIC 860 – 6″ Angled In-Ceiling Speaker

Find a Dealer

Crafted for Remarkable Home Theatre Audio

The PSB CS AIC 860 is more than an in-ceiling speaker; it's a sonic masterpiece designed for true audiophiles. Crafted for home theatre applications, this angled in-ceiling speaker delivers a three-dimensional soundstage and impactful bass that transforms your listening experience. Individual adjustment level switches allow for precisely tuned sound.

Customer Reviews

Write Your Own Review
You're reviewing:CS AIC 860 – 6″ Angled In-Ceiling Speaker
Your Rating

Specifications

More Information
Price $949.00
wireless_speaker No
Specifications

Frequency Response

On Axis @ 0° ±3dB 48-20,000Hz

Sensitivity

Anechoic Chamber 86dB
Listening Room

88dB

Impedance

Nominal 6 Ohms
Minimum 4 Ohms

Input Power

Recommended 10 - 100 Watts

Acoustic Design

Tweeter (Nominal)

1” (25mm) Titanium Dome with Ferrofluid

Woofer (Nominal)

6½” (165mm) Fiber filled, Injection Molded Basket Black Polypropylene Cone Rubber Surround

EQ Adjustment

Tweeter & Woofer Switch

Design Type

Open Back

Dimensions / Weights / Finish

Size (W x H x D)

Grille Dimensions (Frameless Design) - 10 3/4” (272mm)
Rough-in/Mounting Hole - 9 3/4” (245mm)
Mounting Depth with Backcan - 5 1/4” (133mm)

Weight Net - 5.15 lb (2.3 kg)/each
Grille Finish White
Notes

* Non-metric measurements are approximate.

All specifications are subject to change without notice.

FINISH//CONSTRUCTION

Finish Frame

ABS

Back Box Optional Integrated Acoustic Backbox
Grille Material Steel; Perforated with white scrim
Type

Frameless

Connectors

Gold-plated, Spring Loaded, 12AWG
