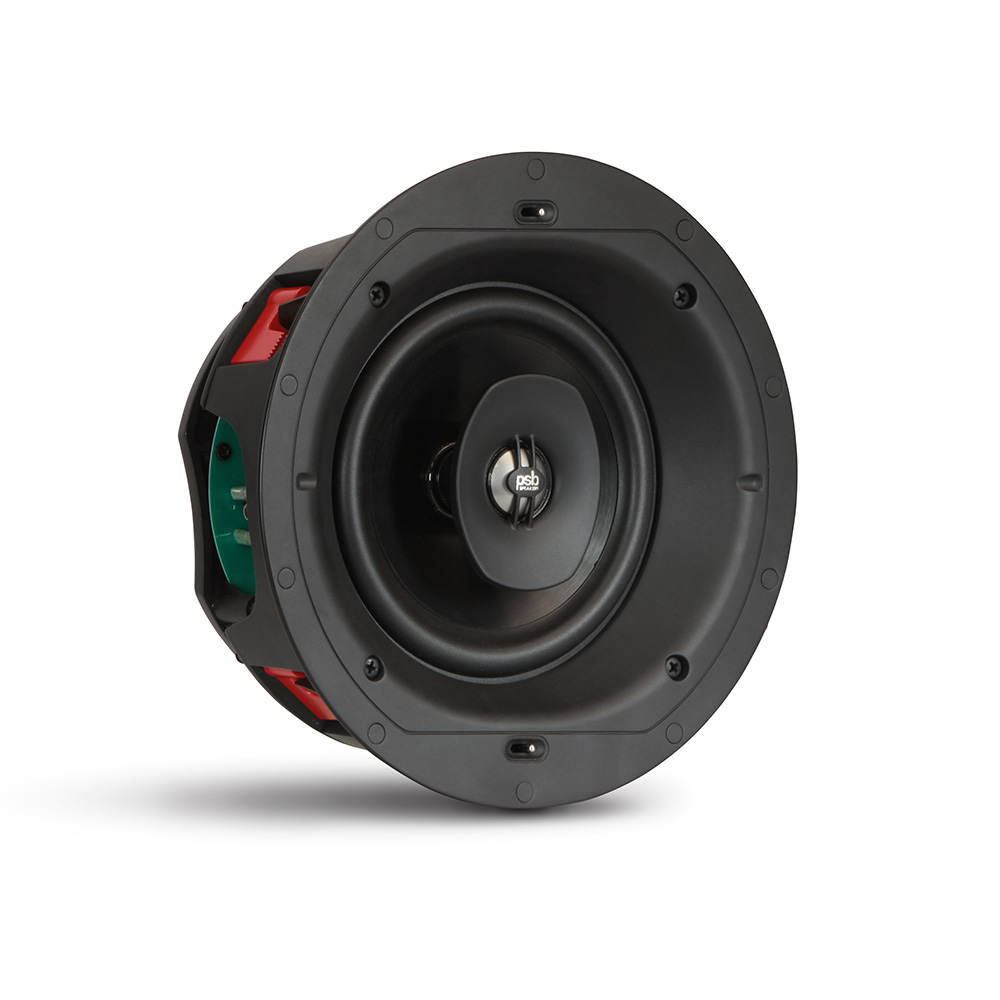

CS650 – 6″ In-Ceiling Speaker

Find a Dealer

An elevated ceiling speaker with unrivaled bass

At the peak of the CS600 series, the CS650 reigns as the premium powerhouse, delivering thunderous bass in large spaces. With cutting-edge technology from PSB's Imagine T3 speaker, it boasts higher sensitivity, lower distortion, and an upgraded 1" titanium tweeter with Wave Guide for precise acoustic adjustments.

Customer Reviews

Write Your Own Review
You're reviewing:CS650 – 6″ In-Ceiling Speaker
Your Rating

Specifications

More Information
Price $649.00
wireless_speaker No
Specifications

Frequency Response

On Axis @ 0° ±3dB 48-20,000Hz

Sensitivity

Anechoic Chamber 86dB
Listening Room

88dB

Impedance

Nominal 6 Ohms
Minimum 4 Ohms

Input Power

Recommended 10 - 100 Watts

Acoustic Design

Tweeter (Nominal)

1” (25mm) Titanium Dome with Ferrofluid

Woofer (Nominal)

6 1/2” (165mm) Fiber filled Injection Moulded Polypropylene Cone

Rubber Surround

Crossover

1800Hz, LR4

Design Type

Open Back

Dimensions / Weights / Finish

Size (W x H x D)

Cutout Diameter - 8 3/8” * (212mm)

Mounting Depth - 4 1/2" * (114mm)

Round Grille Diameter - 9 7/16" * (240mm)

Square Grille Size - 9 1/2" * (241mm)

Weight 4.6lb (2.1kg)/each
Finish White
Notes

* Non-metric measurements are approximate.

All specifications are subject to change without notice.
