Peak performance with unparalleled adjustability
Elevating audio excellence, the CS630 epitomizes balanced, high-fidelity sound. Anchored by a dual voice coil-equipped woofer and precision-engineered aluminum dome tweeters, it masterfully handles elevated volumes, delivering resonant bass and pristine clarity. From your hallway to your home theatre, experience fine-tuned, optimized performance consistent with your style.

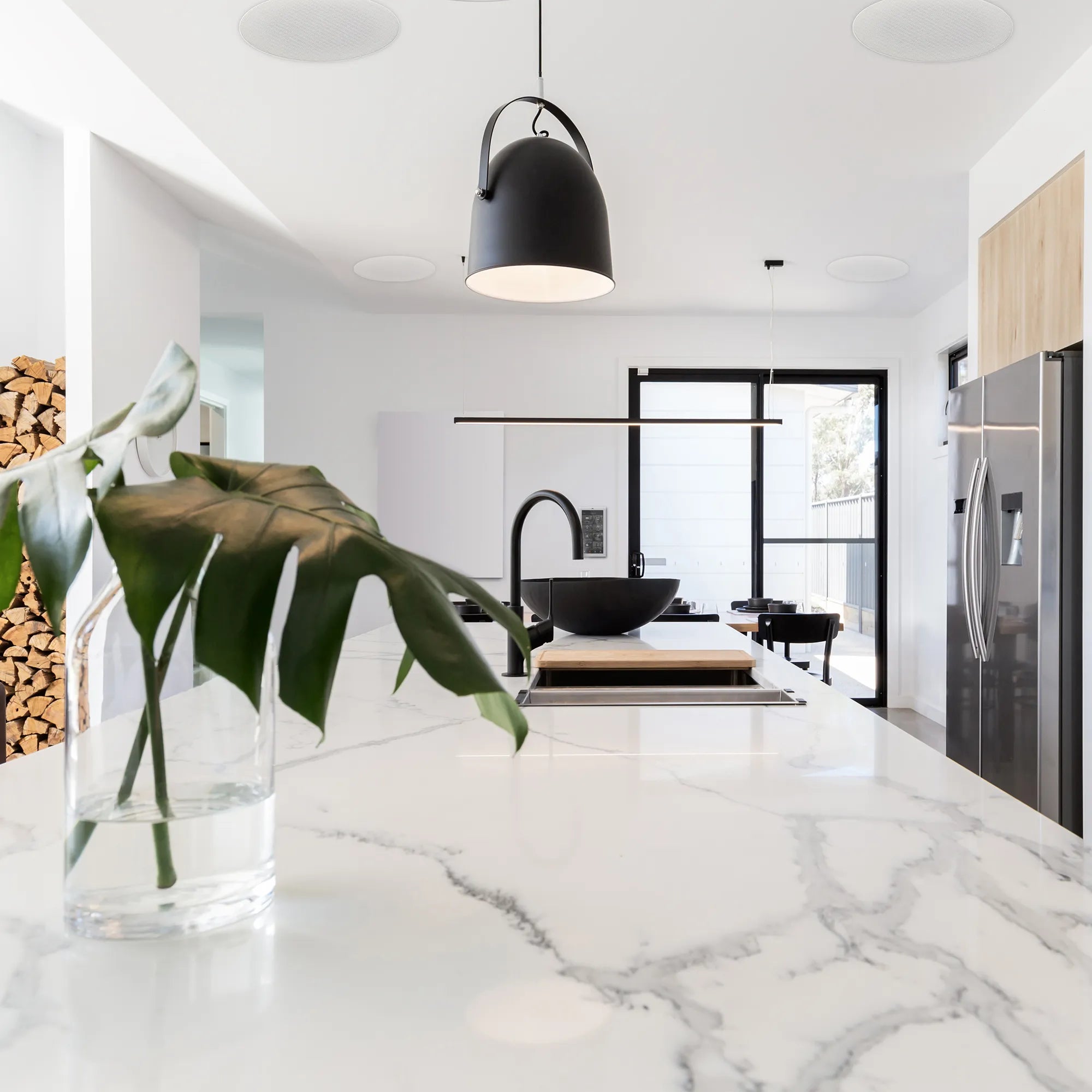

Balanced, High-Quality Audio For Discerning Listeners

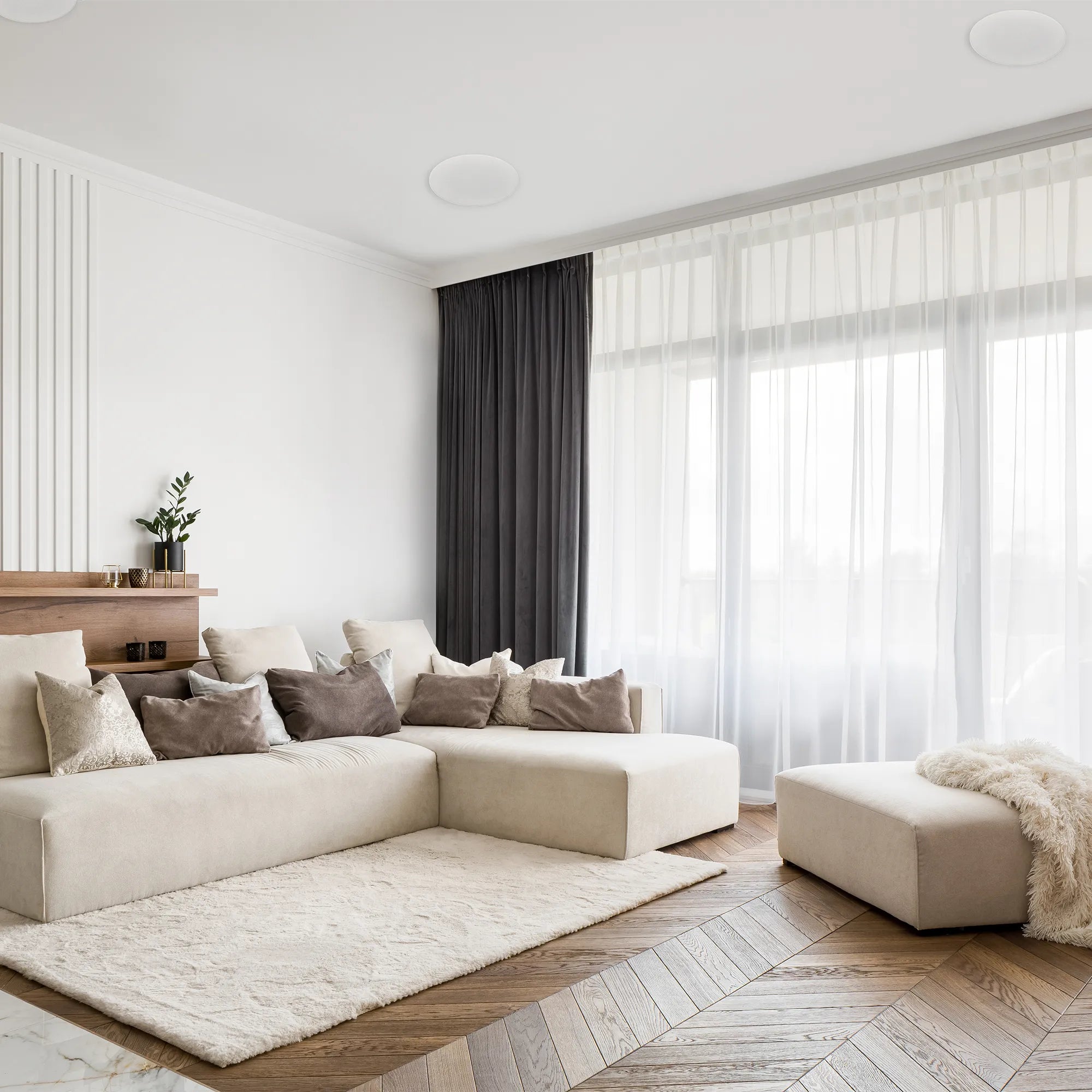

Ceiling Speakers Optimized for Performance

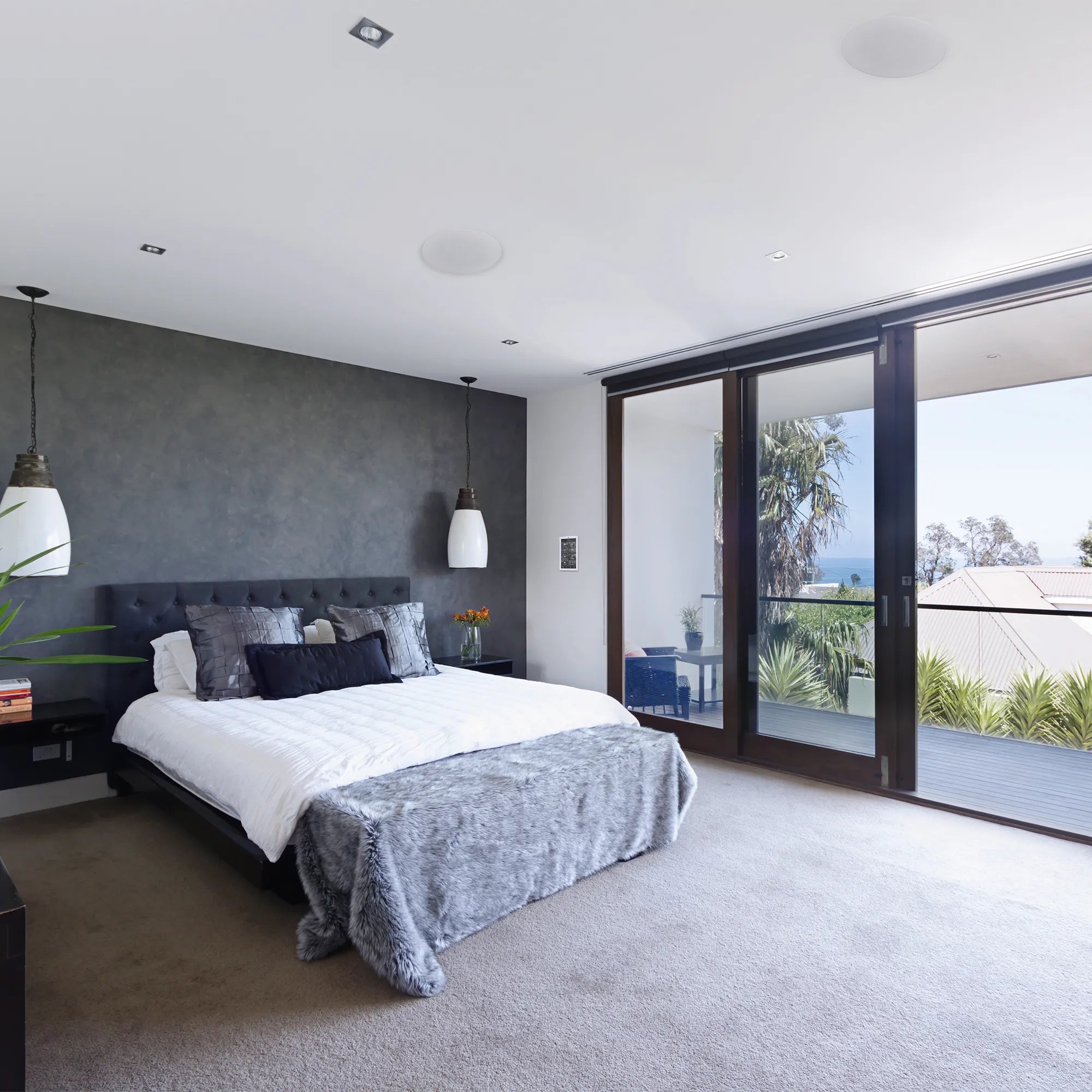

Configured for your space’s acoustic characteristics

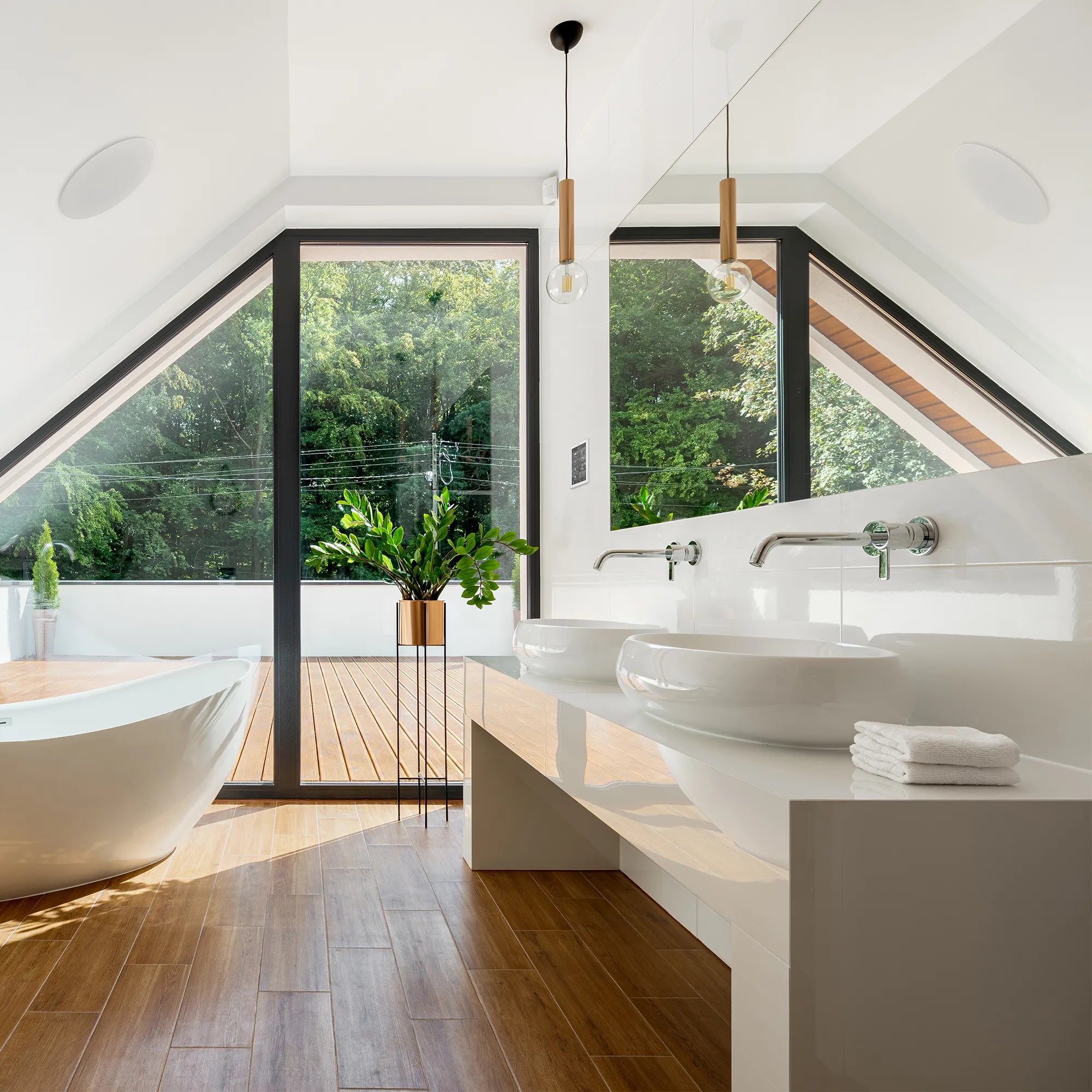

Smooth installation and integration
Specifications
Frequency Response
| On Axis @ 0° ±3dB | 50-20,000Hz |
|---|
Sensitivity
| Anechoic Chamber | 85dB |
|---|---|
| Listening Room | 87dB |
Impedance
| Nominal | 8 Ohms |
|---|---|
| Minimum | 6 Ohms |
Input Power
| Recommended | 10 - 100 Watts |
|---|
Acoustic Design
| Tweeter (Nominal) | 2 x3/4" (19mm) Aluminium Dome Black anodized |
|---|---|
| Woofer (Nominal) | 6 1/2" (165mm) Fiber filled Injection Moulded Polypropylene Cone Rubber Surround Dual Voice Coil |
| Crossover | 2100Hz, LR4 |
| Design Type | Open Back |
Dimensions / Weights / Finish
| Size (W x H x D) | Cutout Diameter - 8 3/8" * (212mm) Mounting Depth - 4 1/2" * (114mm) Round Grille Diameter - 9 7/16" * (240mm) Square Grille Size - 9 1/2" * (241mm) |
|---|---|
| Weight | 4.8lb (2.2kg)/each |
| Finish | White |
| Notes | * Non-metric measurements are approximate. All specifications are subject to change without notice. |
