Dolby Atmos® Propel Your Sound
The Imagine XA is the latest addition to the Imagine X series, and the first PSB speaker to be Dolby Atmos® certified. Used as the elevation or height speaker in an affordable Dolby Atmos surround system, the Imagine XA creates an enthralling layer of sound – from above. The Imagine XA enables you to get the best and latest Dolby format, and has been used by Dolby themselves to flaunt their new Dolby Atmos® Multi-channel Surround specification.

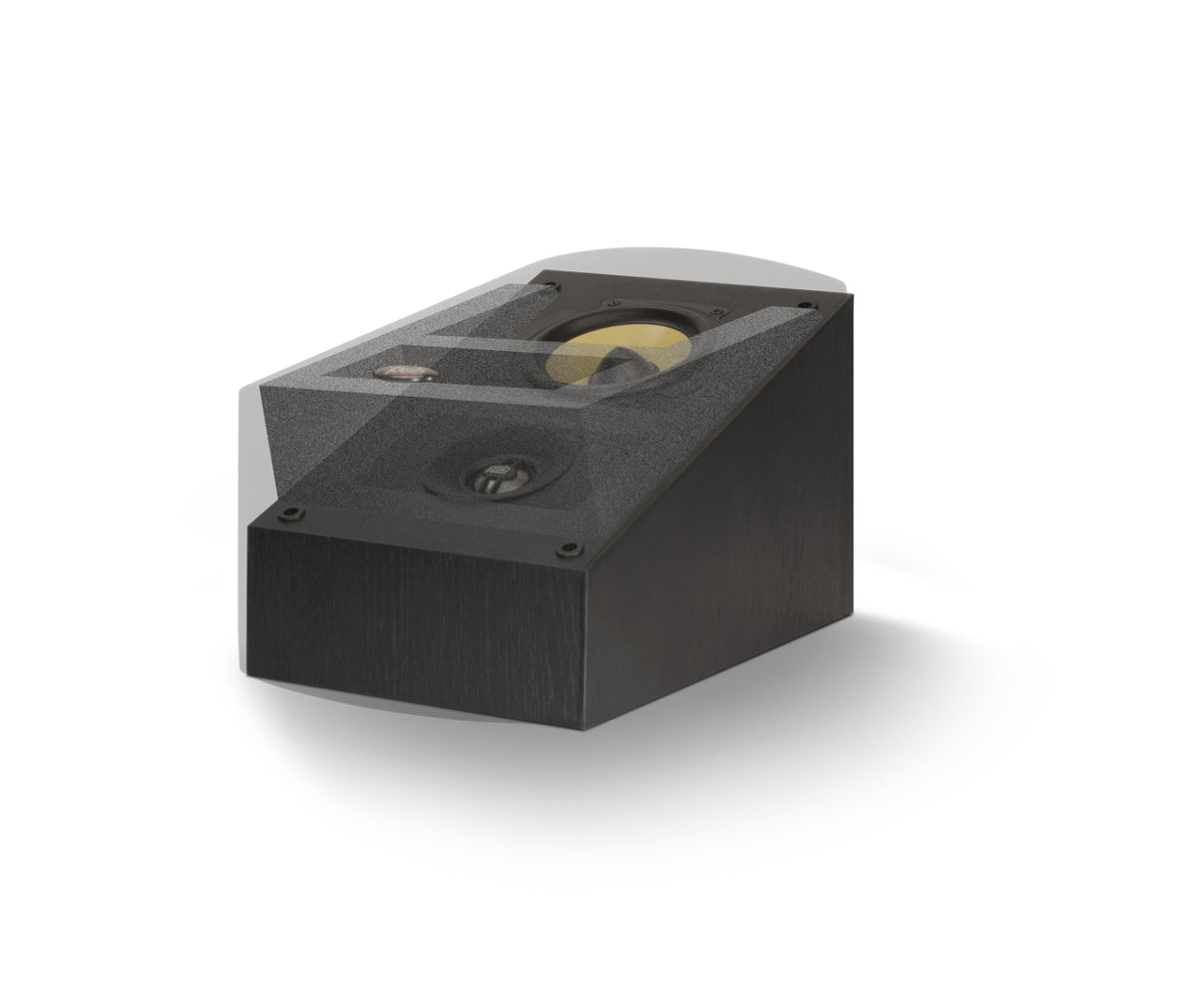

Advanced vertically-firing driver array

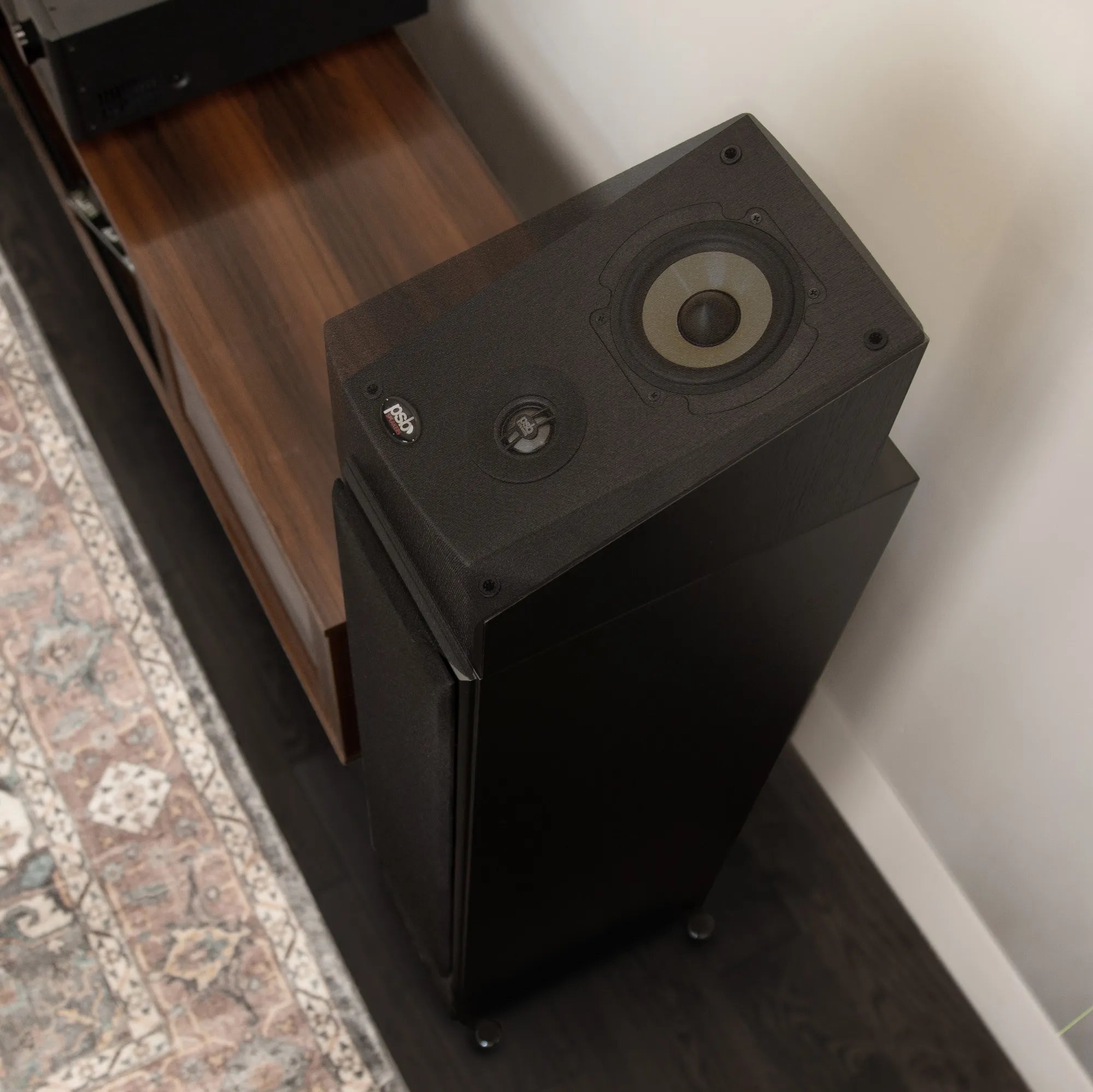

Add Dolby Atmos® to your existing home theatre system

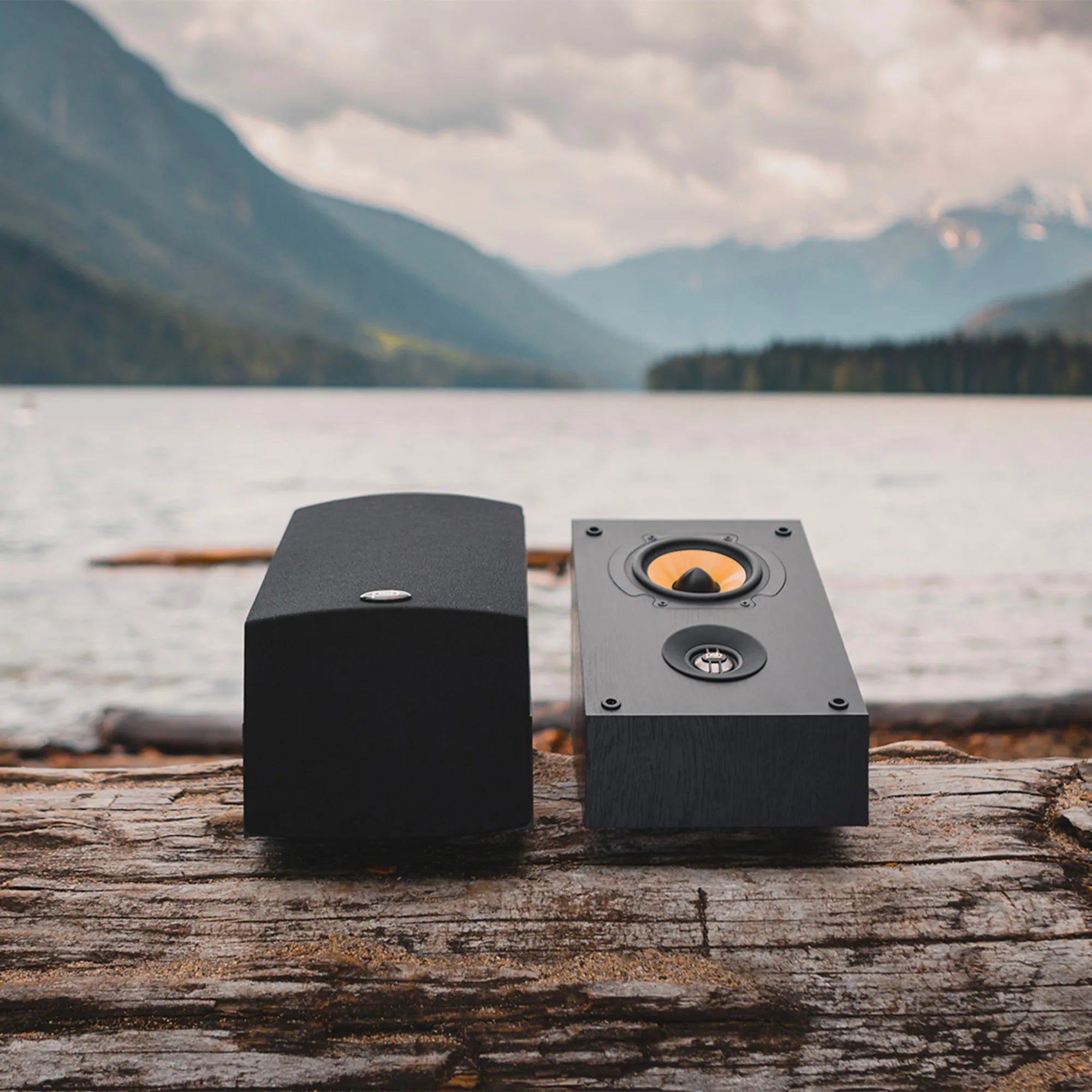

Flexible to install

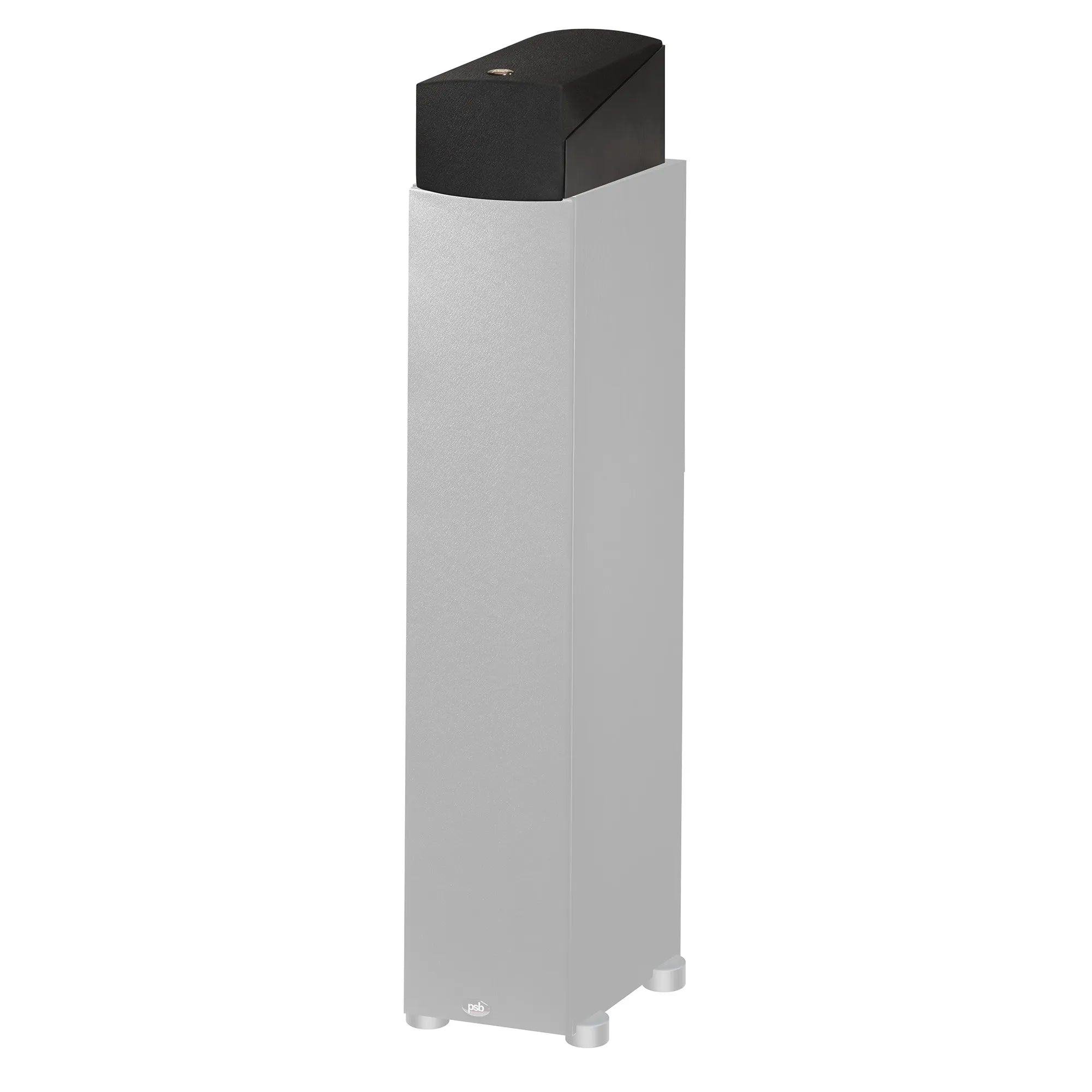

Seamless Integration
Specifications
Frequency Response
| On Axis @ 0° ±3dB | 100 - 23,000Hz |
|---|---|
| LF Cutoff -10dB | 60Hz |
Sensitivity
| Anechoic Chamber | 85dB |
|---|---|
| Listening Room | 87dB |
Impedance
| Nominal | 8 Ohms |
|---|---|
| Minimum | 4 Ohms |
Input Power
| Recommended | 10 - 80 Watts |
|---|
Acoustic Design
| Tweeter (Nominal) | 1" (25mm) Titanium Dome with Ferrofluid Neodymium Magnet |
|---|---|
| Woofer (Nominal) | 4" (102mm) Clay/Ceramic reinforced Injection Moulded Polypropylene Cone Rubber Surround Turbo Magnet |
| Crossover | 2,000Hz, B3 |
| Design Type | Sealed |
Dimensions / Weights / Finish
| Size (W x H x D) | 6 1/2 x10 1/2 x6 3/4"* 168 x173 x265mm |
|---|---|
| Weight | Net - 6.5lb (2.9kg)/each Shipping - 15.6lb (7.1kg)/each |
| Notes | * Non-metric measurements are approximate. All specifications are subject to change without notice. |
